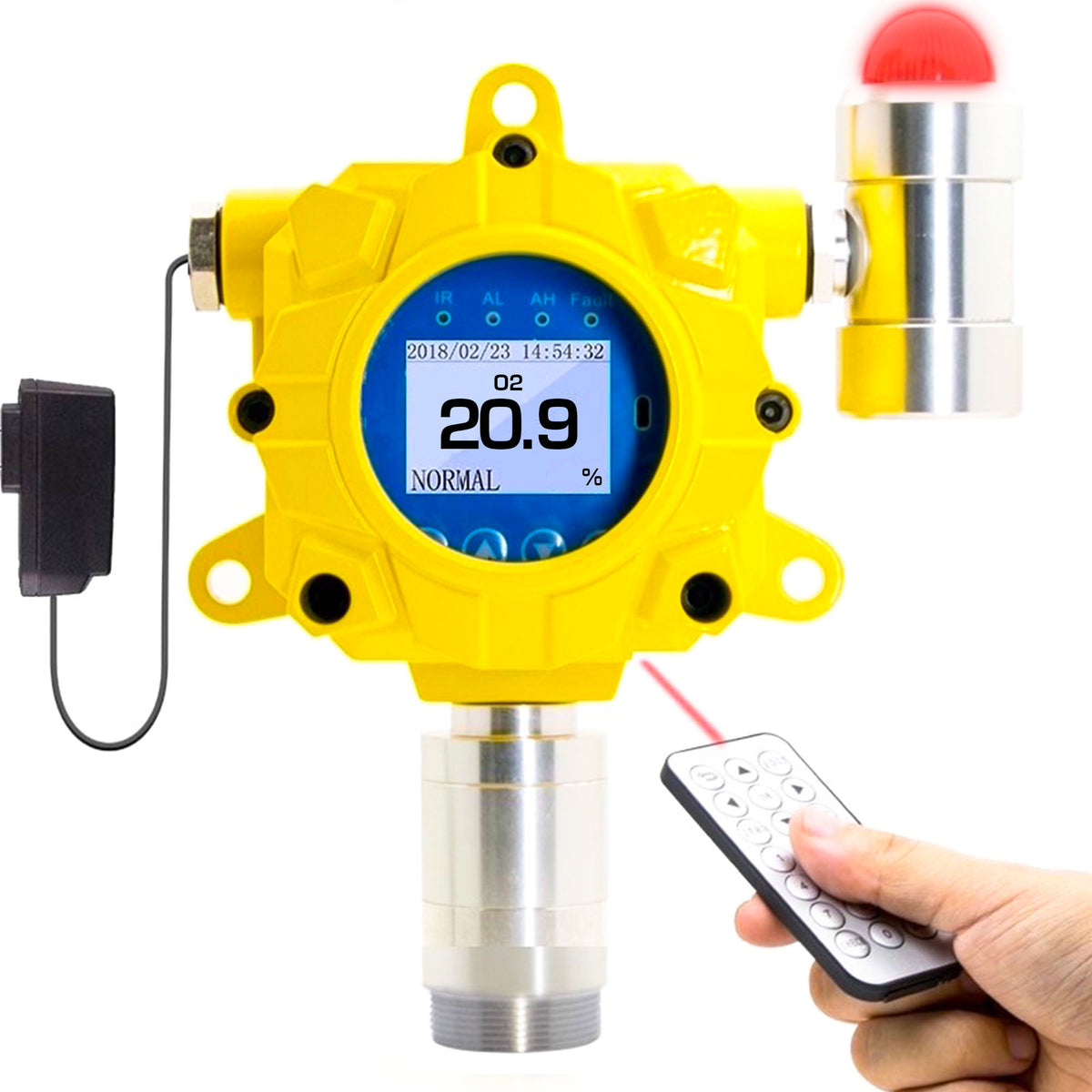

FD-60-O2 – OXYGEN Detector | Wall Mount

Price:

Brand: FORENSICS DETECTORS
Model: FD-60-O2
User Manual: Click Here

🚀 INDUSTRIAL: Heavy-duty fixed O2 gas detector, range 0 – 30%. Electrochemical sensor. Comes FACTORY-CALIBRATED.
🌎 USE: Remote control up to 8 meters. 2 x relay alarm triggered switches (50W each relay) to control fans, pumps, electrical items, garage doors, or additional alarms.
🎆 FEATURES: Large LED alarm and buzzer. Adjustable audio and visual. Remote control. RS485 MODBUS Output and Analog Output (4-20 mA) for remote sensing and data logging.
💪 STRONG: Explosion, dust, water, and flameproof. Explosion-proof grade: Exd ⅡC T6 Gb with IP65 housing protection.
🕵️ TRUST: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

Details: Heavy-duty, industrial, fixed OXYGEN (O2) gas detector for continuous detection, making it perfect for storage facilities where oxygen may be depleted such as battery rooms, industrial areas, factory settings, processing, sterilization, cleaning, livestock, and many others. In addition to a warning/alarm function, the detector can be used to switch ON/OFF electrical equipment up to 50W each relay power by setting a low and high alarm. Triggering relays is perfect for strobe lights, FAN CONTROL, VENTILATION CONTROL, and other devices. We also offer oxygen detectors for personal protection, waterproof versions, and models to detect high purity oxygen.

Included: Fixed gas detector, user manual, remote control with battery, HEX key to remove the cover, 24V power adapter to plug to 110V outlet, and wiring. Arrives with a certified calibration certificate.

Calibration Options:
Calibration Service by Forensics Detectors
Calibration Tutorial (DIY)

Calibration Kit (sold separately):
Calibration Gas (N2)
Calibration Gas Regulator (C10)
Calibration Cap
Tubing

Other Accessories (sold separately):
Bump Gas (N2)
Gas Sensor Replacement (O2)
Air Sampling Pump Kit
Alarm Extension Fixture

Specifications

Oxygen (O2) Detection Range: 0 – 30% with 0.1% resolution
Gas Sensor Type: Electrochemical Gas Sensor
Sensor Error: < +/- 5% F.S
Sensor Lifetime: 2 – 3 years
Recommended Calibration Period: 12 months
Explosion-Proof Grade: ATEX certified Ex d ⅡC T6 Gb
Protection Category: IP66
Alarm: LED, Buzzer
Response Time: <60 seconds
Power Supply: DC 24V ± 15%
Working Temperature: 0 – 122F
Working Humidity: 0 – 95% RH (no dew)
Electrical Output: 2 x relay contact output, max power 50W each relay
Communication: 4 – 20 mA and RS485
Dimensions: 200 mm x 180 mm x 90 mm (L x W x H)
Weight: 3 lbs
Threads: G1/2 male proof hose pipe, thread size M20 x 1.5 mm
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
