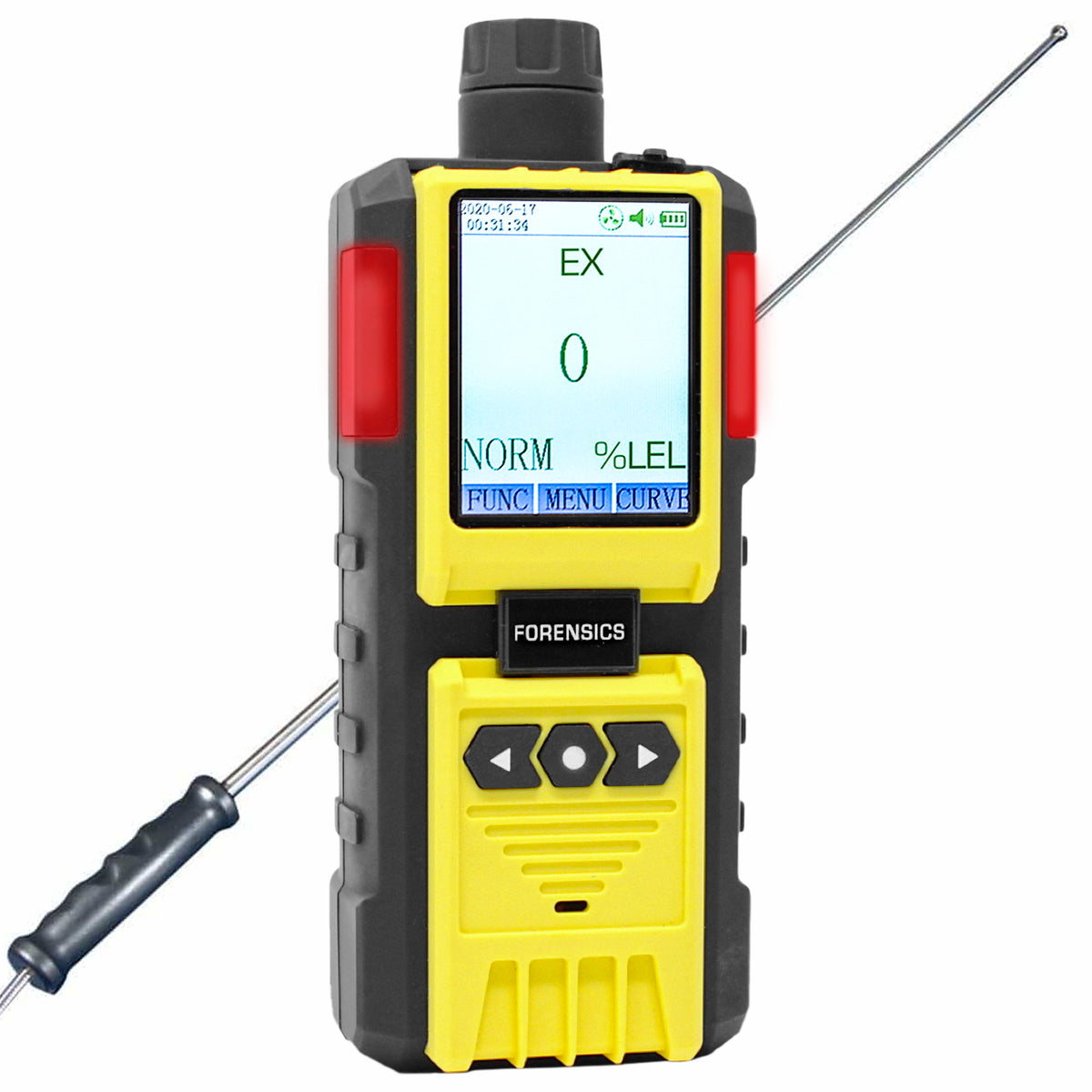

FD-600-EX – Combustibles Analyzer | EX LEL | USA NIST Calibration

Price:

Brand: FORENSICS DETECTORS
Model: FD-600-EX
User Manual: Click Here
Correcting %LEL Factors for Gases/Vapors: Click Here

Features:

🎆 DETECT: Combustibles EX LEL detector, 0 – 100% with 1% resolution with built-in pump for super fast detection.
🌈 COLOR: Color screen and graph functions allow for easy and intuitive operation.
📲 ALARMS: The detector records alarm events with date and time stamps.
💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-resistant, and explosion-proof.
🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

Details: FORENSICS DETECTORS’ superior EX-LEL DETECTOR with a built-in pump allows for faster response, point probe sampling, and continuous monitoring. This device is perfect for tracking any build-up of combustibles in indoor environments, tanks, or enclosed areas. This EX-LEL analyzer has a 32-bit microprocessor, color LCD, and graphing capability.

Detectable Gases and Vapors: Acetone, acetylene, alcohol, ammonia, benzene, butane, diesel vapors, ethanol, ethylene, oxide, gasoline vapors, hexane, isopropanol methane, naphtha, natural gas, paint thinners, propane, flammable solvents, and hundreds of other combustible gases.

Included: EX LEL analyzer, user manual, certified calibration certificate, USB charging cable, charger, 3ft silicone tubing, and telescopic probe.

Calibration Options:
Calibration Service by Forensics Detectors
Calibration Tutorial (DIY)

Calibration Kit (DIY sold separately):
Calibration Gas (EX)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing
Bump Gas (EX)

Accessories (sold separately):
Gas Detector Waterproof Case
Gas Detector Stand
Telescopic Probe
Tubing (3ft)
Gas Sensor Replacement (EX) (email us)

Specifications

Combustible Gases Detection: calibrated to methane (CH4)
Detection Range: 0 – 100% LEL with 1% LEL resolution
Error: ≤ ±5%
Response Time: ≤ 20 sec
Store / Operating Temp: 0°F – 122°F
Store / Operating Humidity: <95%RH
Battery: DC 3.7V Li-on battery, 3200 mAh
Recommended Calibration Period: 12 months
Gas Sensor Type: Catalytic Bead Type Gas Sensor
Gas Sensor Life: 2 – 3 years (catalyst bead sensor)
Explosion-Proof Grade: ATEX certified Ex ib IIC T4 Gb
Weight: 14 oz
Dimensions: 5.1 in × 2.6 in x 1.2 in
Charge Time: 3 hours
Operating Time: > 10 hours
Pump Rate: 0.2 – 0.4 LPM (200 – 400 cc/min)
Alarm: LED, Buzzer, and Vibration
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
