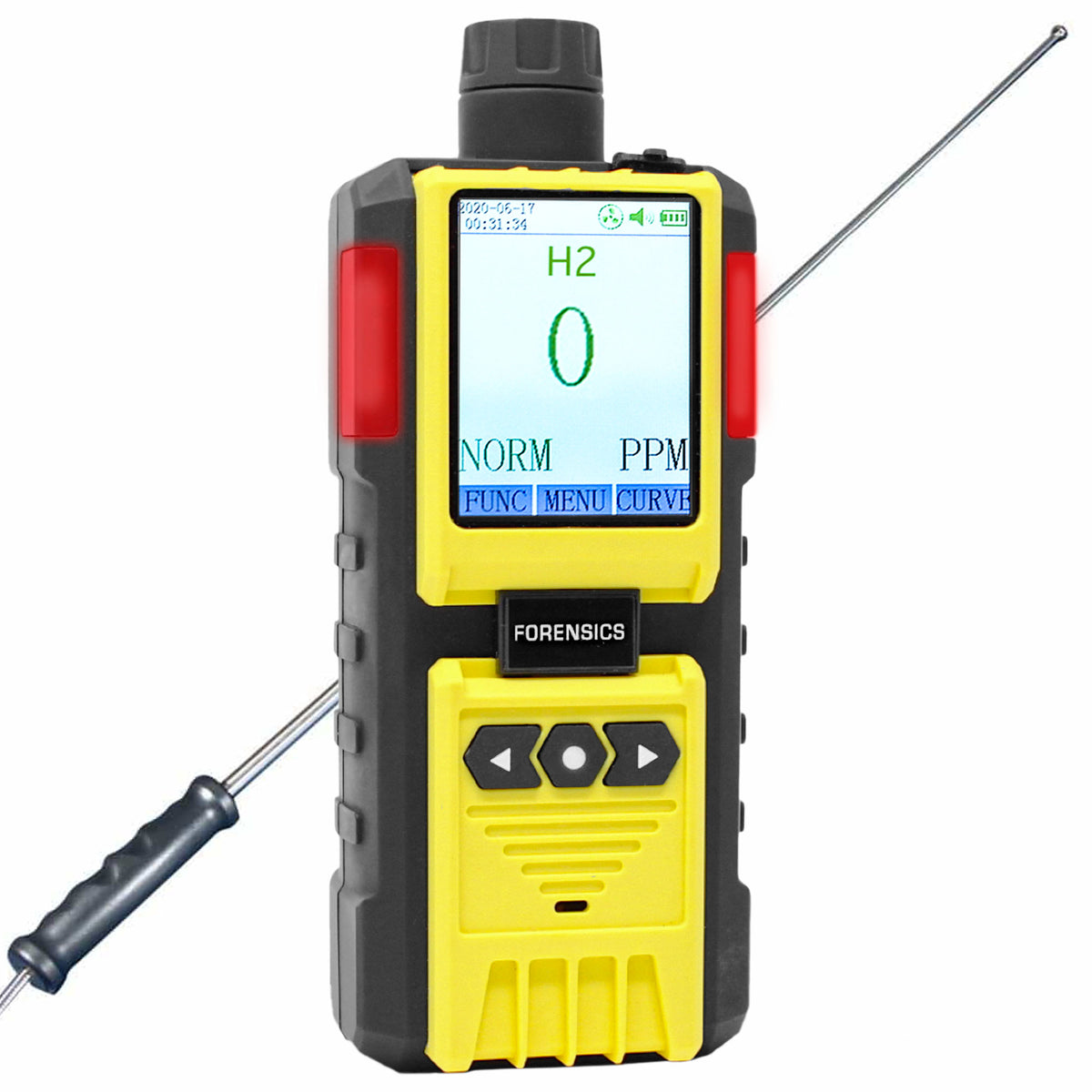

FD-600-H2-HIGH – Hydrogen Gas Leak Detector | High Range 40,000 ppm | USA NIST Calibration

Brand: FORENSICS DETECTORS
Model: FD-600-H2-HIGH
User Manual: Click Here

Features:

• 🎆 DETECT: Hydrogen Gas Leak Detector measuring 0 – 40,000 ppm with built-in pump for super fast detection.
• 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation. USB computer data logging included.
• 📲 ALARMS: The detector records alarm events with date and time stamps.
• 💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-resistant, and explosion-proof, exceeding ATEX certified Ex ib IIC T4 Gb.
• 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

Details: This is a top-quality FORENSICS DETECTORS Hydrogen Gas Leak Detector with a built-in pump allowing faster response, point probe sampling, and continuous monitoring. This is our HIGH RANGE version that provides users with more range to detect hydrogen gas closer to its Lower Explosive Limit (which is 40,000 ppm). So, 40,000ppm = 100 %LEL (for hydrogen). Perfect for (a) tracking hydrogen gas leaks in hydrogen storage and distribution facilities (b) detecting hydrogen tracer gas leaks for plumbing applications such as pipe leaks and system leaks, and (c) for testing hydrogen accumulation in battery rooms or a facility that may release hydrogen where it may be accumulating and pose a hazard. This Hydrogen Leak Detector is one of the most advanced on the market, having a 32-bit microprocessor, color LCD, and graphing capability. If you need a more sensitive hydrogen analyzer 0 – 1000 ppm version.

Included: Hydrogen Gas Leak Detector, User manual, USB charging cable, charger, analyzer case, stainless probe (with hood is optional), tubing, and certified calibration certificate.

Calibration Options:
Calibration Service by Forensics Detectors
Calibration Tutorial (DIY)

Calibration Kit Items (sold separately):
Calibration Gas (H2)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing

Accessories (sold separately):
Gas Sensor Replacement (H2) (email us)
Gas Detector Waterproof Case
Gas Detector Stand

Gas Calibration Service (sold separately):
Gas Detector Calibration Service

Specifications

Hydrogen (H2) Gas Detection: 0 – 40,000 ppm with 100 ppm resolution
Error: ≤ ± 5% F.S.
Response Time: < 30 seconds
Store / Operating Temp: 0°F – 122°F
Store / Operating Humidity: <95%RH
Battery: DC 3.7V Li-on battery, 3200 mAh
Gas Sensor Life: 2 – 3 years
Gas Sensor Type: Electrochemical Gas Sensor
Recommended Calibration Period: 12 months
Explosion-Proof Grade: ATEX certified Ex ib IIC T4 Gb
Protection Category: IP65
Weight: 14 oz
Dimensions: 5.1 in × 2.6 in x 1.2 in
Charge Time: 4 hours
Operating Time: > 10 hours
Alarm: LED, Buzzer, and Vibration
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
