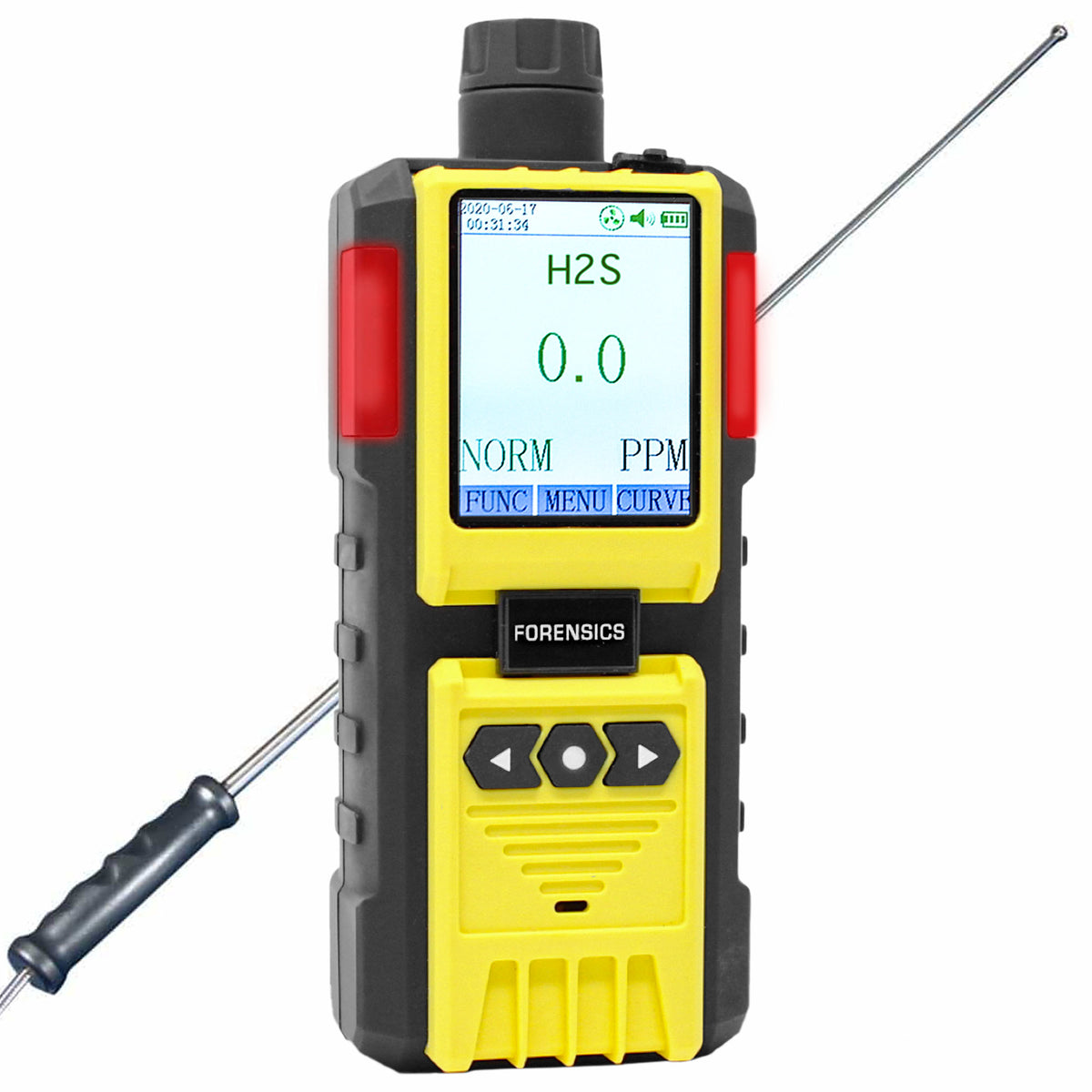

FD-600-H2S – H2S Monitor Analyzer | USA NIST Calibration

Brand: FORENSICS DETECTORS
Model: FD-600-H2S
User Manual: Click Here

Features:

• 🎆 DETECT: Hydrogen Sulfide Analyzer measuring 0 -100 ppm with 0.1 ppm resolution with built-in pump for super fast detection.
• 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation.
• 📲 ALARMS: The detector records alarm events with date and time stamps.
• 💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-resistant, and explosion-proof.
• 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

Details: This is a top-quality FORENSICS DETECTORS hydrogen sulfide analyzer with a built-in pump allowing for super-fast detection & response, point probe sampling, and continuous monitoring. Perfect for tracking the build-up of hydrogen sulfide gas, rotten egg smell gas, sewer gas, and undertaking an environmental indoor or outdoor (H2S manure pit) measurement. H2S monitoring is popular in refining, mining, tanning, manufacturing, paper processing, and farming. This H2S monitor has a 32-bit microprocessor, color LCD, and graphing capability.

Included: H2S monitor analyzer, user manual, USB charging cable, charger, analyzer case, stainless probe, tubing, and certified calibration certificate.

Calibration Options:
Calibration Service by Forensics Detectors
Calibration Tutorial (DIY)

Calibration Kit (DIY sold separately):
Calibration T-piece & Tubing
Calibration Gas (H2S)
Calibration Gas Regulator (C10)
Bump Gas (H2S)
Tubing

Other Accessories (sold separately):
Gas Detector Hard Case
Gas Detector Stand
Gas Sensor Replacement (H2S)
Telescopic Probe
Tubing (3ft)

Specifications

Hydrogen Sulfide Gas (H2S) Detection: 0 – 100 ppm with 0.1 ppm resolution
Error: ≤ ± 5% F.S.
Response Time: < 30 seconds
Store / Operating Temp: 0°F – 122°F
Store / Operating Humidity: <95%RH
Battery: DC 3.7V Li-on battery, 3200 mAh
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 – 3 years
Recommended Calibration Period: 12 months
Explosion-Proof Grade: ATEX certified Ex ib IIC T4 Gb
Weight: 14 oz
Dimensions: 5.1 in × 2.6 in x 1.2 in
Charge Time: 4 hours
Operating Time: > 10 hours
Pump Rate: 0.3 LPM – 0.5 LPM (300 – 500 cc/min)
Alarm: LED, Buzzer, and Vibration
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
