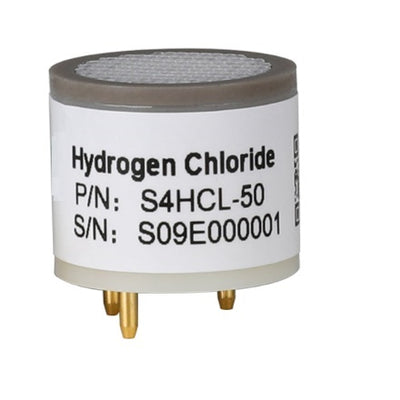

FD-HCl-SENSOR – Hydrogen Chloride Sensor (HCl) | 0 – 50 ppm

Price:

Model: FD-HCl-SENSOR
Datasheet: Click Here PDF
Availability: Usually in stock
Compatible: FD-90A-HCl

Features

⚛️ High precision and long life (2 years)
🚄 Fast response speed, fast return to zero
🔋 Low power consumption, high sensitivity
🔬Wide linear range, strong anti-interference ability
💪 Excellent repeatability and stability

Description

These are generic HCl sensors used as the pin-to-pin replacement of the standard 4-series electrochemical sensors. It is used throughout many gas detector brands and is an excellent HCL gas sensor replacement element.

Our HCl sensor utilizes an advanced electrolytic mechanism where hydrogen chloride and oxygen interact through precise redox reactions on specialized electrodes. By generating an electrical current directly proportional to the gas concentration, this sophisticated sensor enables accurate measurement of hydrogen chloride levels. The current’s magnitude provides a quantitative assessment of HCL presence in various industrial and environmental monitoring applications.

Our hydrogen chloride detection technologies play a pivotal role across diverse industrial and environmental monitoring domains. From manufacturing facilities and animal husbandry to smart municipal infrastructure and atmospheric research, HCL detectors provide comprehensive gas concentration insights. These advanced sensing systems enable precise measurement, early warning mechanisms, and critical monitoring, supporting safety, environmental protection, and regulatory compliance in multiple critical application sectors.

Instructions

Once replaced and installed in your gas detector or analyzer, please let it sit for 24 hours so the sensor can stabilize to your environment. This step is very important.
Then undertake the appropriate zero and calibration for your specific gas detector. See your gas detector manufacturer’s specific instructions.
Once calibrated, your gas analyzer will be ready for use.

Specifications

Detection Principle	Electrochemical Three electrodes
Detection Gas	HCL
Detection Range	0-50 PPM
Maximum Load Concentration	100 PPM
Output Signal	300±100 nA/PPM
Zero Drift	0~5 PPM
Resolution	0.1 PPM
Response Time	<70s
Bias Voltage	+200 mV
Load Resistance	5~30Ω
Working Temperature	-30℃-50℃
Working Humidity	15%RH to 90%RH (no condensation)
Repeatability	<±2% output signal
Long-term Stability	<2% signal/month
Linearity	Regression coefficient R²=0.999
Work Pressure	90 to 110 kPa
Shelf Life	12 months after delivery
Service Life	2 years
