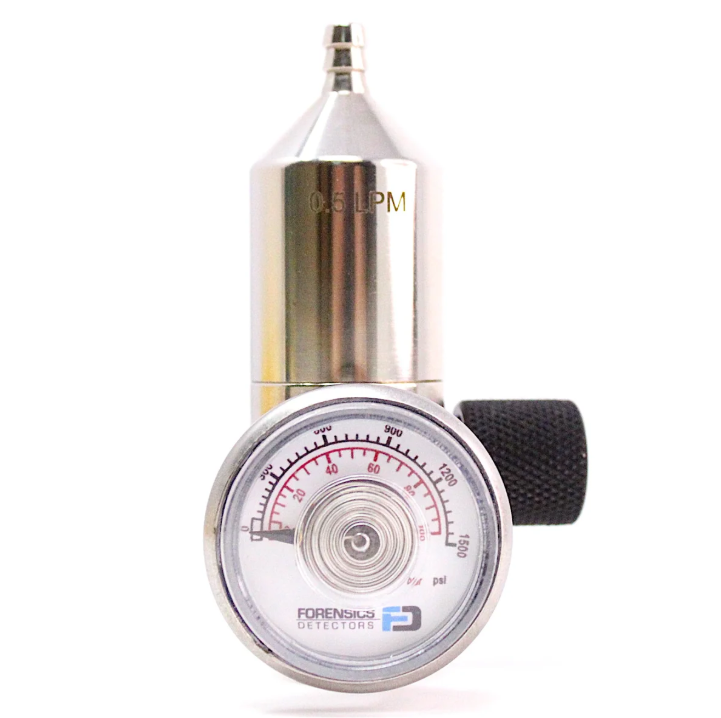

FD-REG-0.5LPM | Gas Regulator Fixed Flow 0.5 LPM C10

Brand: Forensics Detectors
Model: FD-REG-0.5LPM
User Manual: Click Here

Features:

• ⚛️  QUALITY: C10 regulator 0.5 LPM fixed flow.
• 🏕️ USE: Fits all gas calibration bottles with C10 thread.
• 🏋 FLOW RATE: Easy ON/OFF fixed flow rate of 0.5 LPM.
• 🚀 COMPATIBLE: Compatible with GASCO, RAE, RKI, BW, Industrial Scientific, Forensics Detectors, CTI, MESA, AIRGAS gas bottles.
• 🕵️ TRUST: ** 1-year limited warranty **

Details: This is our reliable fixed flow gas regulator at 0.5 LPM.  A commonly recommended flow rate used for gas detector calibration. A gas regulator controls the gas flow to your gas detector or analyzer and also reduces the pressure from a compressed reference gas or calibration gas bottle (which is at a high pressure and compressed to fit a large amount of gas in a small volume of space). A gas regulator allows one to control the gas flow to your instrument for proper and safe calibration. Safety is paramount when working with pressurized gases, so please adhere to safety protocols to prevent accidents and ensure accurate calibration results.

Specifications

Connection Thread: C10 (5/8″-18 UNF)
Material: Nickel-plated Brass
Gas Use Type: Reactive and Non-Reactive
Flow (LPM): 0.5 LPM Fixed Flow
Barb Size: 6mm outer diameter
Gauge Max Pressure: 1500 PSI
Dimensions: 3.3 x 1.7 x 1.6 inches
Weight: 15 oz
