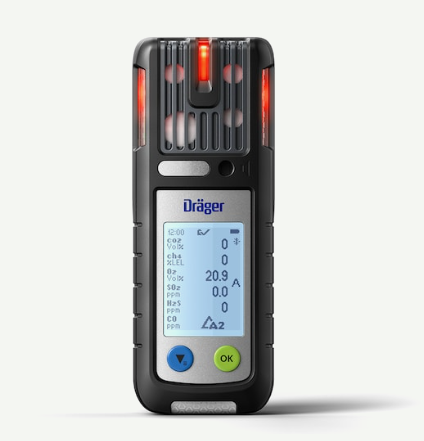

X-AM 5800 – Dräger Multi Gas Detector

Price:

The X-am® 5800 multi-gas detector measures up to six gases and is equipped with a particularly shock-resistant CatEx sensor. With the Dräger Gas Detection Connect software, it offers live data transmission and powerful asset management. Designed for personal monitoring, the X-am® 5800 offers you the highest level of safety at a low cost of ownership.

Key Facts

Measurable gases	Ex, O2, CO, H2S, NO2, SO2, VOC (PID) + (choice out of > 30 sensors)
Sensorports	4
Number of gases	1 – 6
Sensor technology	CAT + PID + IR (CO2 only) + EC

Applications

Personal Air Monitoring	YES
Confined Space Entry	YES
Area Monitoring	YES

Technical Data

Operation time	>12h
Dimensions (W × H × D)	4.8x13x4.4 cm
Weight	220 g
Battery type	NiMH
Degree of protection (IP class)	IP 68

Features

Dual sensors	YES
CatEx Fullrange	YES
D-Light	YES
Internal pump	NO
X-am Pump	YES
X-zone 5500 Area Monitoring	NO
Bump Test Station	YES
X-dock Station	YES
Bluetooth	YES
Bodyguard Alarm (Panic alarm, Motionless detection)	YES
Smart Configuraton in Dräger Gas Detection Connect	YES
Support of Dräger ConHub (Gateway)	YES

Approvals

ATEX	I M1 Ex da ia I Ma; II 1G Ex da ia IIC T4 Ga
IECEx	Ex da ia I Ma; Ex da ia IIC T4 Ga
c CSA us	Class I Div. 1 Group A, B, C, D, E, F, G T4/T3 \| A/Ex da ia IIC T4/T3 /Ga
CE	YES
GOST (EAC)	PO Ex da ia I Ma X 0Ex da ia IIC T4/T3 Ga X
Performance approval	NO
Shipping approval (MED/DNV GL)	NO
